Contour measuring function

Measuring instrument configuration and measuring method that offer easy operation for beginners.

An operator can observe the actual workpiece surface and easily set the starting and the end positions.
he operator can set the starting and the end positions at any angles in order to measure a complex form.
No need for centering operation upon setting a workpice for measurement.

Turn on the measuring instrument and measure a rotation center by using the reference sphere.
Set a workpiece at the workpiece holder.
Rotate θ stage to an arbitrary angle and set each starting and end positions that constitute a profile.

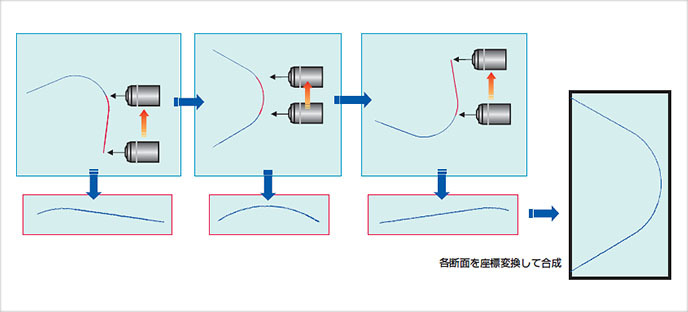

Once the measurement starts, the measuring instrument automatically measures each profile, converts coordinates and combines each profile data into one profile.
