Mitaka Imager  “Image Processing Software”

Various image measuring & analysis software

この機能はオプションです。

FEATURES

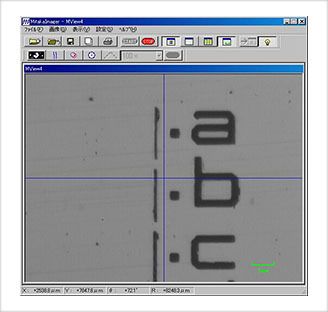

Mitaka Imager Screen

  • Mitaka Imager displays vivid images and provides excellent repeatability with the high-speed & high-resolution laser autofocus. Mitaka Imager simultaneously carries out size measurement during displaying the image. (repeatability of line-width measurement 3δ=0.01µm)
  • High-precision measurement
    Mitaka Imager enables to measure the full measuring range of the XY stage in high-precision by corresponding the image coordinates with the linear scale of the XY stage.
  • excellent automatic measurement
    NH teaching macro-function becomes even more useful with the image processing function.
  • utilization of detection & analysis data
    all the image processing measurements can be saved as CSV for statistical works and/or reports with commercial software.

EXAMPLES

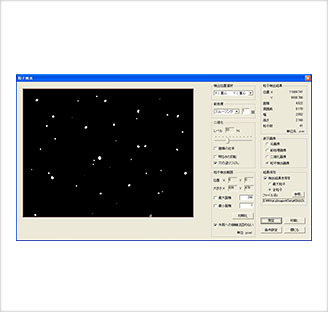

1. grain detection

it measures grain position, area, width, height, circumference, & count


decentration measurement of optic fiber core, scratch, & quantitative measurement of foreign substance, etc.

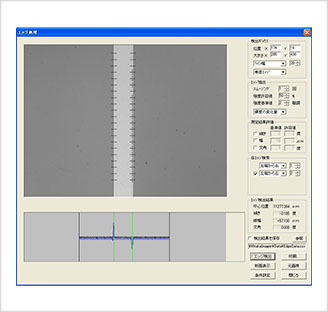

2. edge detection

it detects various edges and measures line & groove widths, central coordinate, inclination, ect.



width & height of optical waveguide, gap measurement of various magnetic heads, width & depth of vee-groove profile, pattern width of LCD & PDP, ect.

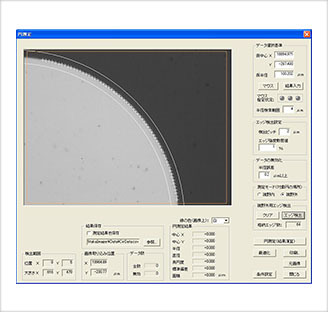

3. circular measurement

it enables to measure a workpiece with a large diameter in high-precision without lowering the objective power by using the integrated XY linear scale.



internal diameter, cylindricity, coaxiality of nozzle holes, decentration of optical lenses, etc.

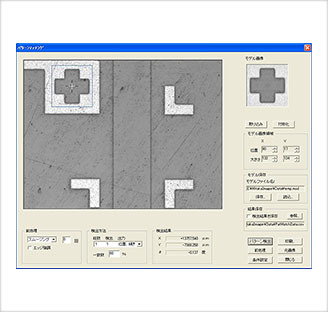

4. pattern matching

it records various pattern models, such as alignment markers, as reference images for detection. And, it carries out inclination & offset measurements of a workpiece & automatically recognizes the measurement position.



offset measurement of populated boards with optical element, determination of coordinate system for alignment, etc.
