Mitaka Map  “3D Surface Texture Analysis & Evaluation Software”

Mitaka Map extracts nano-unevenness from a large area

This function is optional.

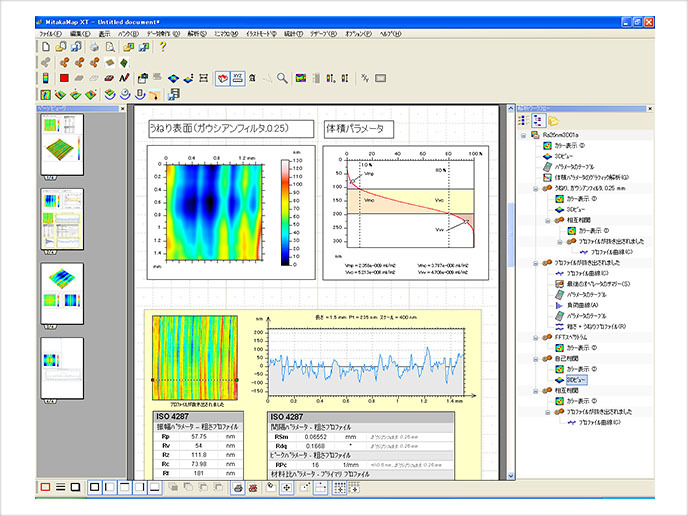

A new analysis & evaluation software, MitakaMap, is available for NH Series.

MitakaMap extracts profiles and surface texture at nano-level for various analysis and evaluations.
MitakaMap is also compliant with ISO-25178, geometric characteristics of surface texture (areal), and several local references (BSI, DIN, NF, JIS, etc.).

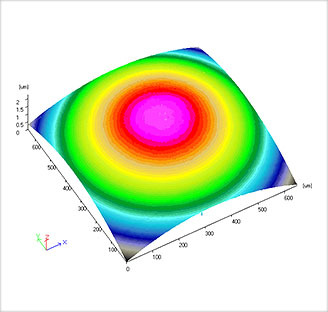

Invisible becomes visible. high resolution surface texture analysis & evaluation software

MitakaMap's realistic view provides vivid surface texture in details which NH standard software could not visualize.

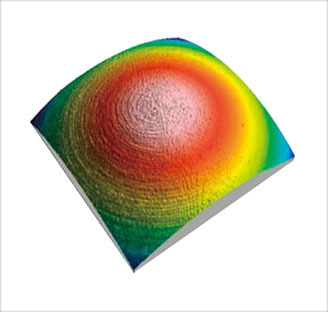

i.e. diamond turning tool surface

NH standard 3D image

MitakaMap 3D image

FEATURES

  • allow to record evaluation parameters and items for automatic calculations.minidocs
  • automatically switches to appropriate analysis menu.pull-down analysis menu
  • displays all the pages of a document with direct access to certain functions related to the pages.page viewer
  • provides abundant measuring information.online help
  • provides exact analysis and evaluation results.dedicated explorer
  • automatically records the entire operations in a document.analysis workflow

MEASURING EXAMPLES

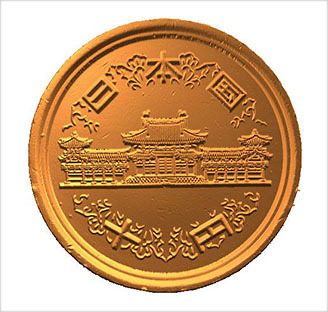

1. coin (10-yen)

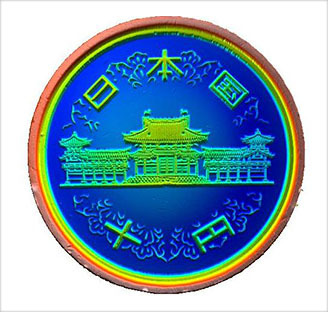

256 color image

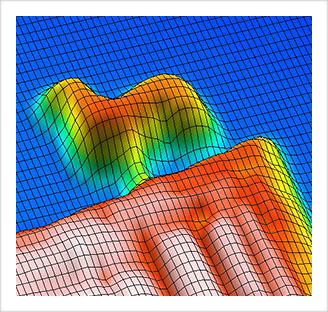

color mesh image(enlarge)

photo image (material: bronze)

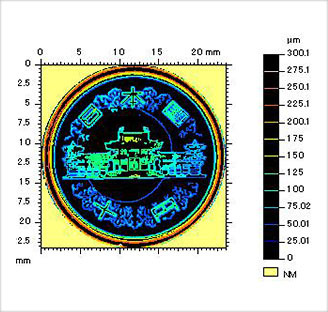

contour diagram

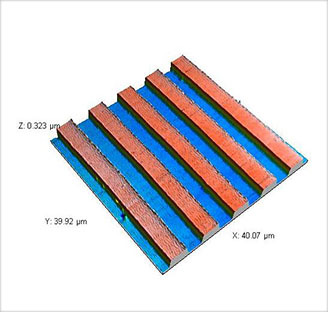

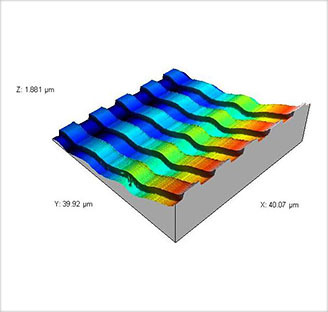

2. grating (height: 0.2µm)

X: 40.07μm　Y: 39.92μm　Z: 1.881μm

X: 40.07μm　Y: 39.92μm　Z: 0.323μm

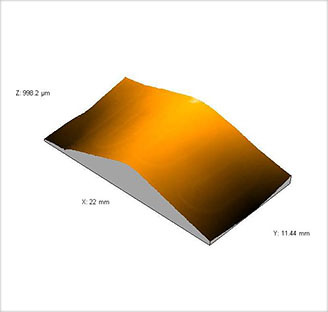

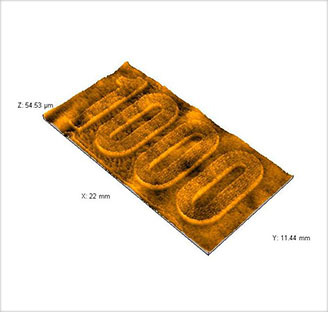

3. ink character quantity of a 1000-yen bill

X: 22mm　Y: 11.44mm　Z: 998μm

X: 22mm　Y: 11.44mm　Z: 54.53μm

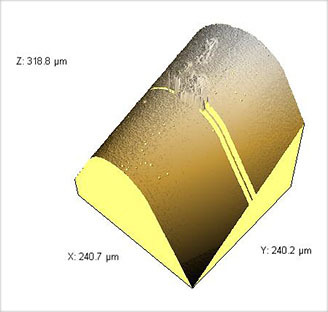

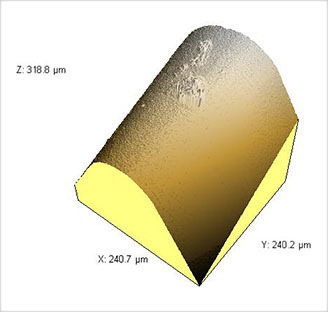

4. tip of a diamond turning tool

X: 240.7μm　Y: 240.2μm　Z: 318.8μm

X: 240.7μm　Y: 240.2μm　Z: 318.8μm
