NH Standard Software  “Standard Software”

NH software carries out multipurpose measurement

Profile measurement / evaluation

  • Z coordinate magnification setup
  • upper and lower limit setup
  • leveling
  • roughness evaluation
    (Ra, Ry, Rz / Rp, Rv, Rz, etc.)
    (compliant with ISO 4278:1997 / JIS B 0601:2001)
  • position (Z axis) display
  • profile size evaluation
  • smoothing process, etc.

Surface measurement / evaluation

  • Z coordinate magnification setup
  • color scale display
  • 3D view
  • profile extraction
  • position (Z axis) display
  • upper and lower limit setup
  • histogram
  • visual effects (polygon / color / mesh)
  • 3D roughness evalutaion (Ra, Ry, Rz / Rp, Rv, Rz, tec.) (compliant with ISO 4278:1997 / JIS B 0601:2001)
  • masking measurement (circular and doughnut shapes)
  • smoothing filter
  • volume and surface area calculations
  • reference plane correction, etc.

Measurement auxiliary functions

Alignment function

It transforms the mechanical XY-coordinates to the relative coordinates of a workpiece

Base plane calibration function

It calibrates the base plane of a workpiece by taking reference points (3 points < number of reference point < 300 points)

Point determination function

It measures any height on a linear line with regular pitch
application: waviness / camber measurement of lead frame

Height measurement function

It measures average height, maximum and minimum values of several points of a measuring plane
application: maximum height measurement of BGA

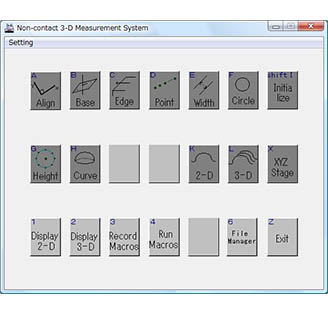

Macro and file management

Teaching macro function

It records manually operated measurements to macro files. It also creates original macros by combining automatically-generated macros.
For example, firstly you would define coordinate system with alignment and base plane calibration functions. Secondly, NH standard software would automatically measure size, cross-section / 3D profiles, etc. and would allow you to manage product quality easily.

File manager

It converts profile data into CSV, DXF, etc. file formats.
